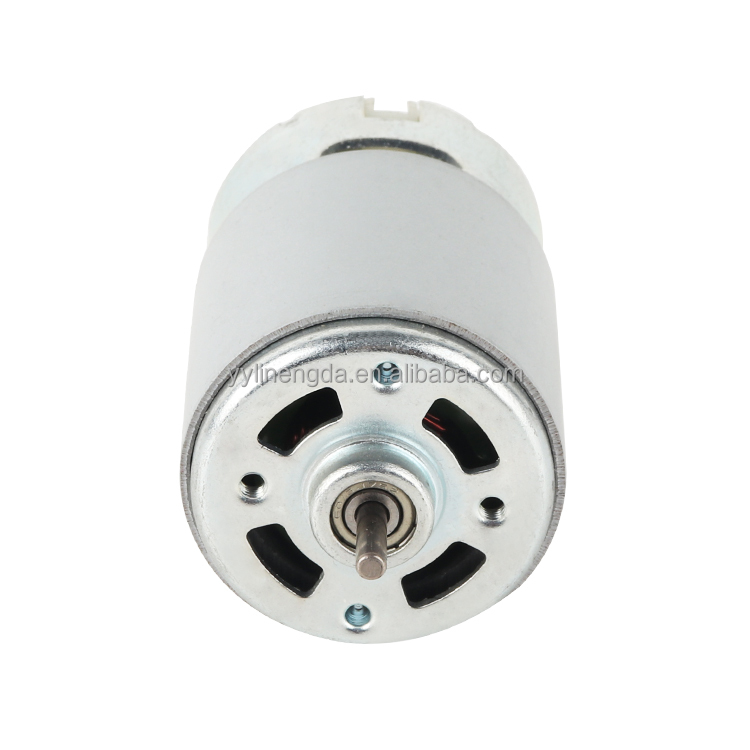

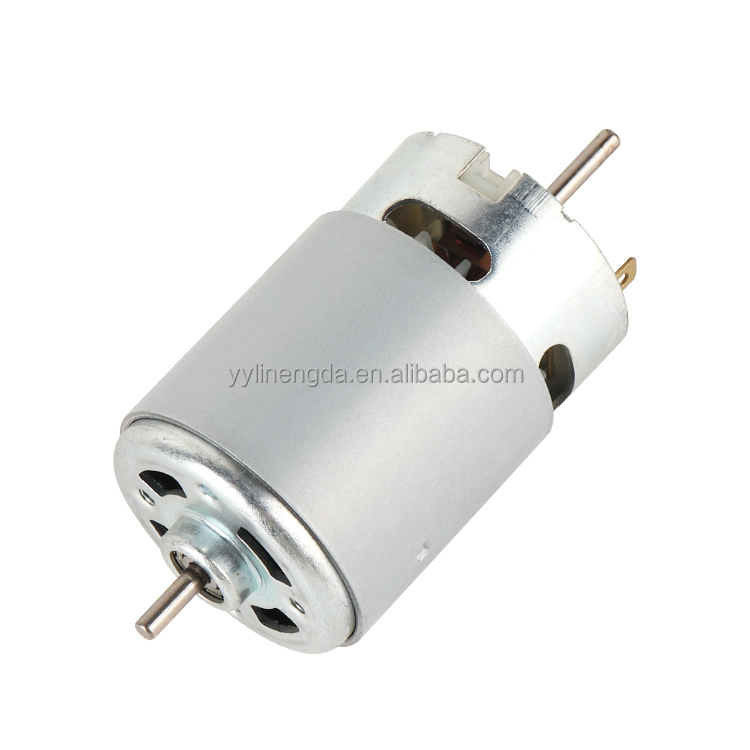

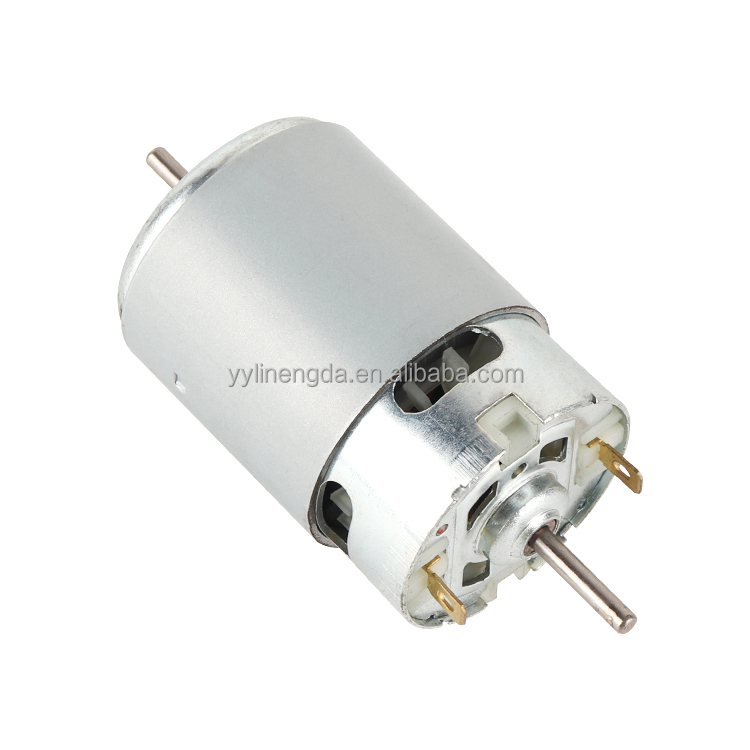

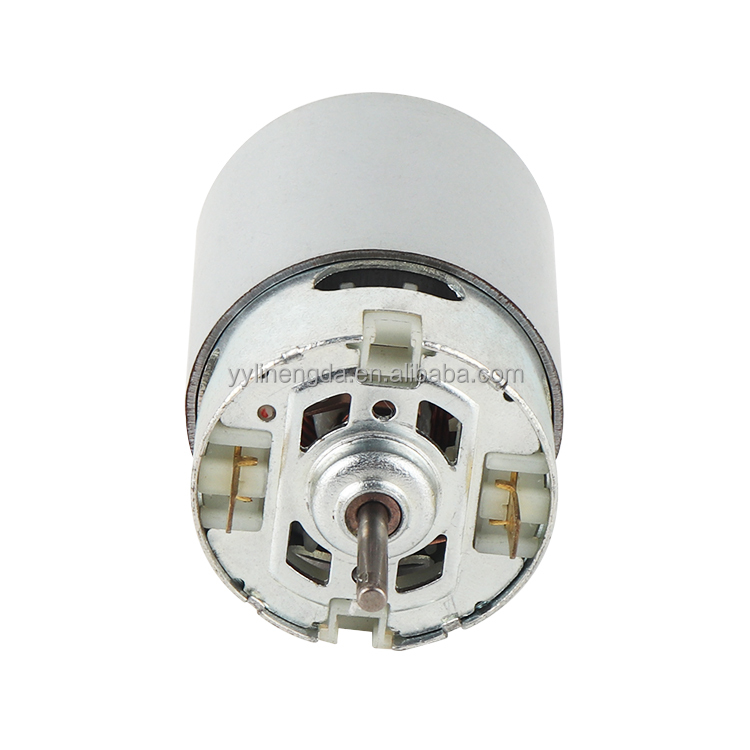

RS650 18V 21100RPM 135.61W 712.1g.cm Torque Micro Brushed DC Motor for Smart Home Fan Water Gun Applications
RS650 18V 21100RPM 135.61W 712.1g.cm Torque Micro Brushed DC Motor for Smart Home Fan Water Gun Applications
RS650 18V 21100RPM 135.61W 712.1g.cm Torque Micro Brushed DC Motor for Smart Home Fan Water Gun Applications
RS650 18V 21100RPM 135.61W 712.1g.cm Torque Micro Brushed DC Motor for Smart Home Fan Water Gun Applications
RS650 18V 21100RPM 135.61W 712.1g.cm Torque Micro Brushed DC Motor for Smart Home Fan Water Gun Applications
1 / 5
RS650 18V 21100RPM 135.61W 712.1g.cm Torque Micro Brushed DC Motor for Smart Home Fan Water Gun Applications
RS650 18V 21100RPM 135.61W 712.1g.cm Torque Micro Brushed DC Motor for Smart Home Fan Water Gun Applications
RS650 18V 21100RPM 135.61W 712.1g.cm Torque Micro Brushed DC Motor for Smart Home Fan Water Gun Applications
RS650 18V 21100RPM 135.61W 712.1g.cm Torque Micro Brushed DC Motor for Smart Home Fan Water Gun Applications
RS650 18V 21100RPM 135.61W 712.1g.cm Torque Micro Brushed DC Motor for Smart Home Fan Water Gun Applications

RS650 18V 21100RPM 135.61W 712.1g.cm Torque Micro Brushed DC Motor for Smart Home Fan Water Gun Applications

Send Inquiry

Product Description

DC Motor Presentation 1
DC Motor Presentation 2
DC Motor Presentation 3
Nominal Voltage
(VDC)		 No Load At Maximum Efficiency At Stall
Speed
(RPM)		 Current
(A)		 Speed
(RPM)		 Current
(A)		 Efficiency
(%)		 Torque
(g.cm)		 Output
(W)		 Torque
(g.cm)		 Current
(A)
18 21100 1.41 18568 10.73 70.2 712.1 135.61 5934.4 79.08

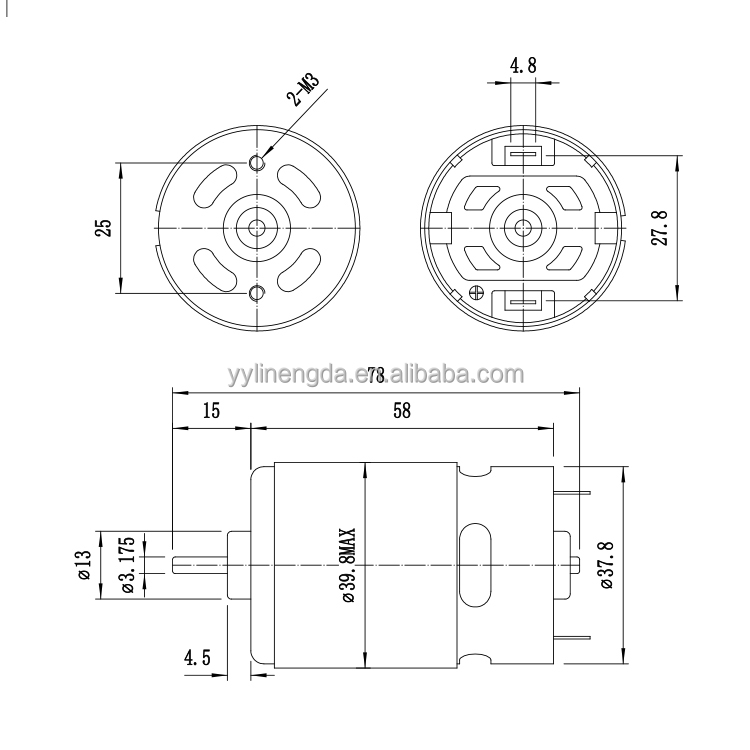

Technical Drawing 1
Technical Drawing 2
Performance Chart
Motor Component Details
Manufacturing Process 1
Manufacturing Process 2
Quality Inspection
Packaging and Delivery
Certification Showcase
Frequently Asked Questions
Q What types of motors do you produce?
We produce Brushed DC Motors, Brushless DC Motors, Planetary Gearboxes, and other related transmission products.
Q Do you offer customization options for your motors?
Yes, we support comprehensive customization, including voltage, operating speed, torque output, shaft dimensions/shapes, and the integration of custom connectors or capacitors.
Q How can I select the right motor model for my application?
Please share your key technical requirements (such as target voltage, speed, torque limits, and space dimensions) or any engineering drawings, and we will recommend the optimal motor model.
Q What is your typical lead time for production?
For in-stock items, the lead time is 5-10 days. Standard production orders take 15-30 days, while highly customized orders are managed on a project-by-project basis.
Q How do you control and guarantee product quality?
We have a dedicated QC team and implement a rigorous quality inspection protocol spanning from raw material sourcing to final testing of finished products.
Q What product certifications do you hold?
Our motor products are fully compliant and certified with CE and ROHS standards.
