RS390/RS395 Professional 12V 23600RPM 36.35W Permanent Magnet Micro Brushed DC Motor for Boat & Fan Applications

Product Description

Motor Spec 1
Motor Spec 2
Motor Spec 3
NOMINAL NO LOAD AT MAXIMUM EFFICIENCY AT STALL
VOLTAGE SPEED CURRENT SPEED CURRENT EFFICIENCY TORQUE OUTPUT TORQUE CURRENT
VDC RPM A RPM A % g.cm W g.cm A
12 23600 0.7 20532 4.73 64.1 172.6 36.35 1327.5 31.68

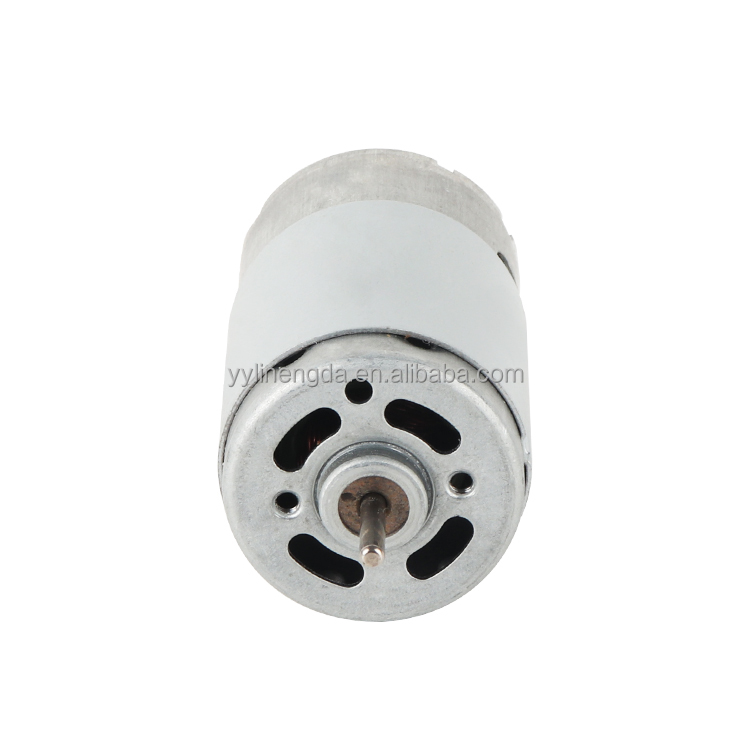

Product View 1

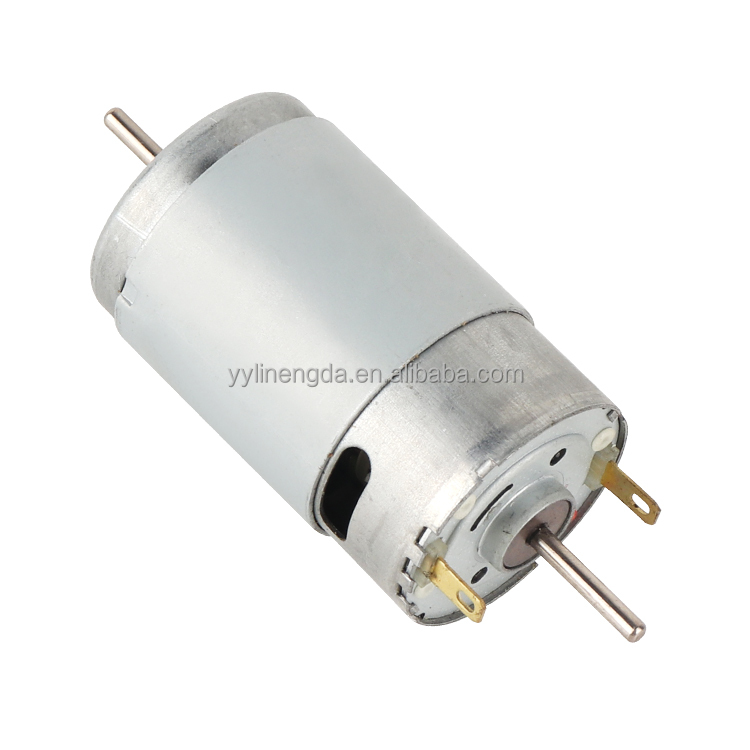

Product View 2

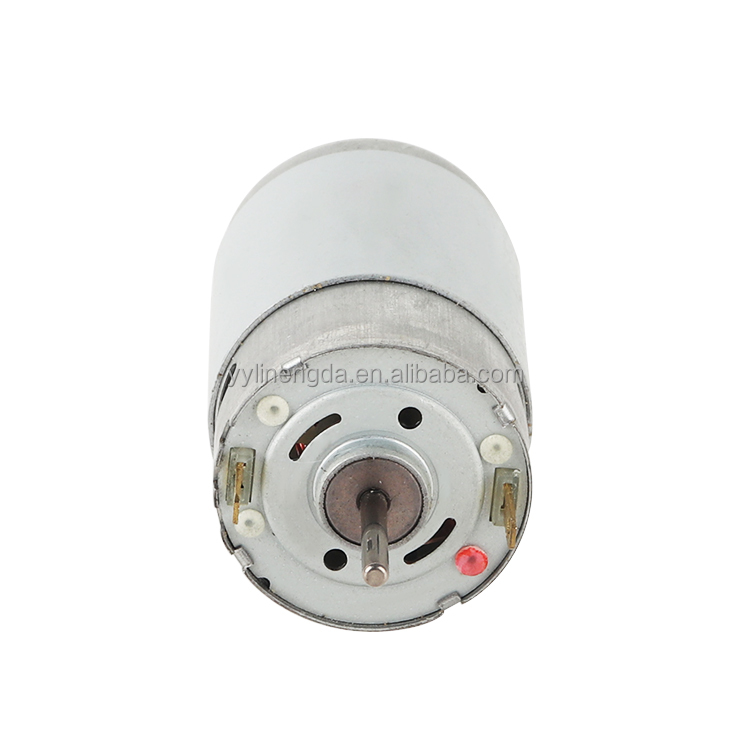

Product View 3
⚙️ 1. Products & Customization

Q1. What types of motors are produced?
A: Production includes Brushed DC Motors, Brushless DC Motors, Planetary Gearboxes, etc. Please refer to technical specifications for details.

Q2. Is motor customization available?
A: Yes, customization is provided for voltage, speed, torque, shaft size/shape, and the addition of connectors or capacitors as required.

Q3. Can samples be ordered for testing?
A: Yes, sample quotes and proforma invoices are provided. Samples are dispatched following payment.

📊 2. Selection & Design

Q1. How to choose a suitable motor?
A: Provide specifications such as voltage, speed, torque, and size or technical drawings to receive a model recommendation.

Q2. Is custom motor design provided?
A: Yes, custom design is available. Note that mold development costs may apply depending on requirements.

📦 3. Orders & Delivery

Q1. What is the lead time?
A: In-stock items: 5-10 days; Standard production: 15-30 days; Customized orders: Case by case.

Q2. What is the minimum order quantity (MOQ)?
A: MOQ varies by specific product model.

Q3. What payment terms are accepted?
A: Standard terms include TT and PayPal. Generally, a 40% deposit is required, with the remaining 60% due before shipment.

🛡️ 4. Quality & Certifications

Q1. How is quality ensured?
A: A dedicated QC team performs strict inspections from raw materials through to finished products.

Q2. What certifications are held?
A: Products are CE and ROHS certified.

🚀 5. Logistics & Support

Q1. What shipping methods are offered?
A: Express delivery for samples or small parcels (under 100kg); Air or sea freight for bulk orders.

Q2. How soon are inquiries addressed?
A: Responses are typically provided within 24 hours.

Production 1
Production 2
Production 3
Factory 1
Factory 2
Factory 3
💡 Frequently Asked Questions
Q1: Can I get a motor with specific dimensions for my project? Yes, we specialize in customizing shaft size, shape, and overall motor housing to fit your specific mechanical requirements.
Q2: Are your DC motors compliant with international standards? Absolutely. All our motors are CE and ROHS certified, ensuring they meet essential safety and environmental requirements for global markets.
Q3: What is the benefit of a Planetary Gearbox over standard gears? Planetary gearboxes offer higher torque density, better efficiency, and a more compact design compared to traditional spur gearboxes.
Q4: Do you support small batch orders for startups? Yes, while MOQs vary, we provide sample testing and support small batch production to help you validate your design before mass production.
Q5: How do you handle shipping for heavy bulk orders? For bulk orders exceeding 100kg, we arrange professional air or sea freight to ensure cost-effective and safe delivery to your destination.
Q6: What technical information should I provide for a quote? Please provide the required voltage (VDC), rated speed (RPM), rated torque (g.cm or Nm), and any specific size constraints or environmental conditions.
